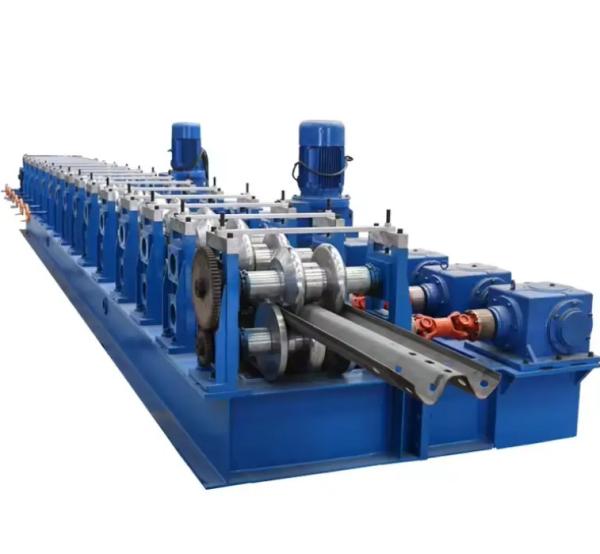

Automatic Highway Guardrail Forming Machine High Speed Profile Making Machine 7.5Kw

Name: Automatic Highway Guardrail Forming Machine High Speed Profile Making Machine 75Kw
Brand: THRONCH
Price: 10000 USD

Brand Name : THRONCH

Certification : CE.ISO

Place of Origin : China

MOQ : 1 SET

Price : USD 10000-100000 PER SET

Payment Terms : TT / LC,Western Union,MoneyGram

Supply Ability : 20 SET / MONTH

Delivery Time : Depends on the items and the quantity of your order.

Packaging Details : Main body of High Speed Metal Stud and Track Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are

Material Compatibility : Steel, Aluminum, Copper, Etc.

Control System : Servo Motor And PLC

Horizontal deviation : +- 0.5 Mm

Longitudinal deviation of hole : +- 0.5 Mm

Power Supply : 220V

Punching Speed : 300 Punches Per Minute

Use : It is used in Conjunction with the forming machine

Profile : Highway guardrail panel

Type : cold roll forming

Cutting System : Hydraulic

Main Motor Power : 7.5Kw

Contact Now

Long Service Life Automatic Highway Guardrail Profile High-Speed Guardrail Roll Forming MachineProduct Description:

Highway guardrail forming machine is a guardrail machine used to produce highway industry, and the finished product is highway guardrail. It is mostly used in safety guardrails on highways, national roads, provincial roads, urban roads, rural roads and other motor vehicle lanes.

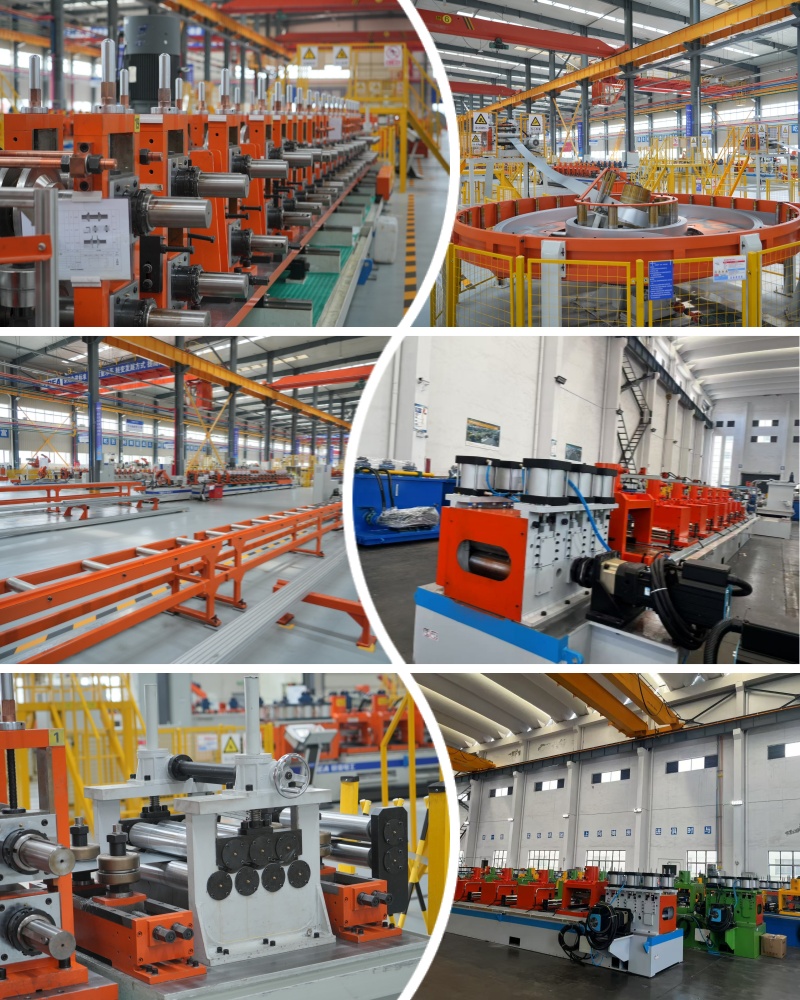

Production Display:

Technical Parameters:

Suitable material	Color steel sheet , galvanized steel sheet
Main motor power	7.5KW with Cycloidal reducer
Hydraulic station power	11KW
Hydraulic oil	40#
Thickness	1.0mm~5.0 mm
Diameter	Φ70mm
Electric tension	380V 3phase 50HZ
Material of roller	High grade 45# forged steel
Rolling galvanization thickness	0.05mm
Processing speed	10- 30 m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 quenched

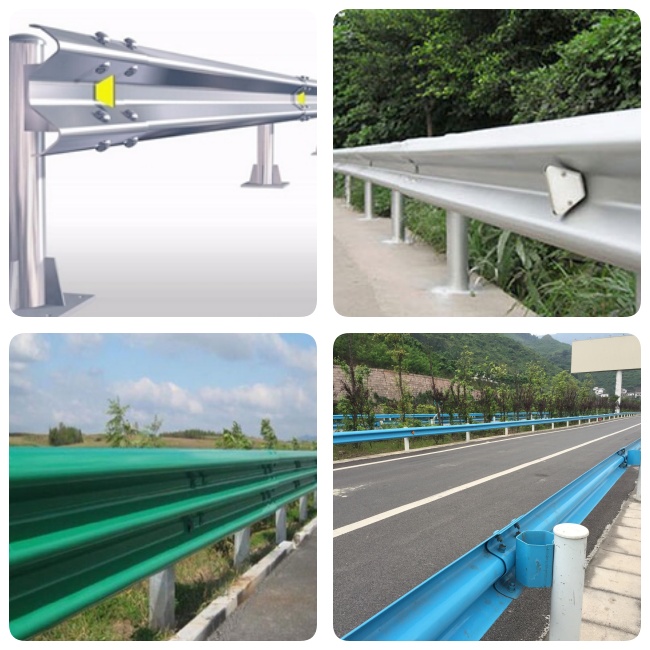

Applications:

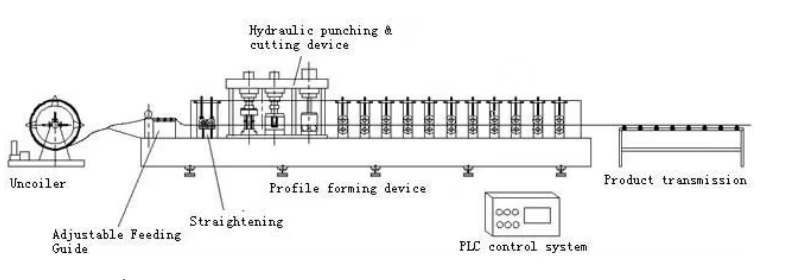

Production Process:

Automatic Highway Guardrail Forming Machine High Speed Profile Making Machine 7.5Kw

Packing and Shipping:

Automatic Highway Guardrail Forming Machine High Speed Profile Making Machine 7.5Kw

FAQ:

Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.

Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
